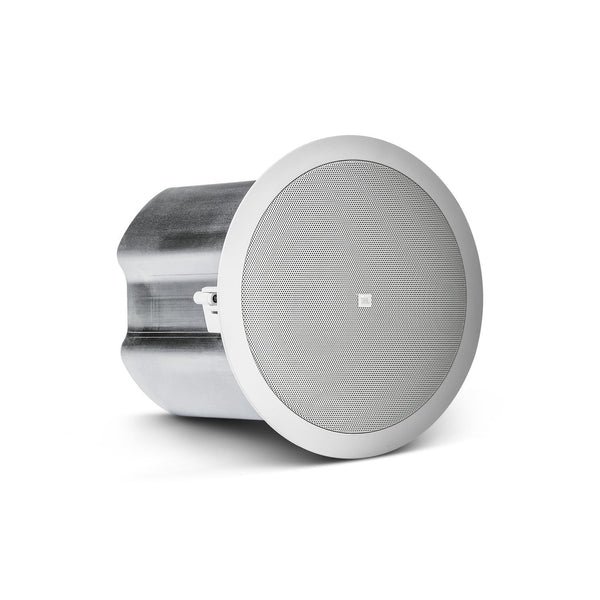

JBL Control 16C-VA 6.5” Two-Way Coaxial Ceiling Speaker – EN54-24 Life Safety Certified
The JBL CONTROL 16C-VA Two-Way 6.5″ Co-axial Ceiling Loudspeaker is a premium choice for life safety applications and commercial audio systems. Fully EN54-24 compliant, it ensures reliable performance in emergency voice evacuation systems while also delivering exceptional music and speech clarity.
Designed with a 165mm polypropylene cone woofer and a 19mm soft-dome liquid-cooled tweeter, this loudspeaker provides balanced sound with rich bass, clear mids, and crisp highs. Its wide 110° coverage ensures even audio distribution, making it suitable for cafés, hotels, airports, schools, and retail spaces. The integrated backcan simplifies installation, while its fire-resistant and UV-protected housing guarantees durability in demanding environments.
Key Features
-

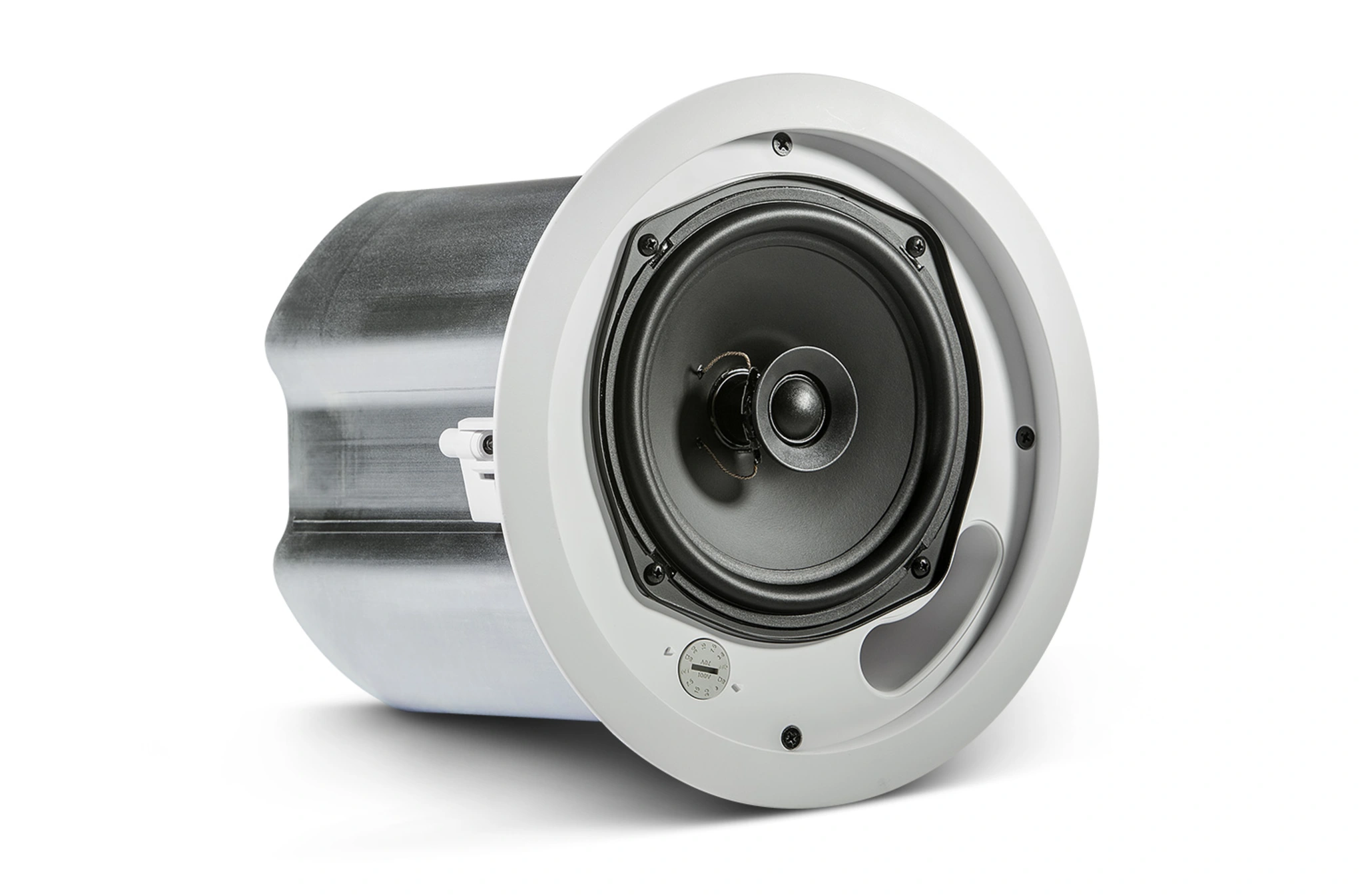

6.5″ high-output driver with polypropylene cone and butyl rubber surround
-
19mm soft-dome liquid-cooled tweeter for detailed high-frequency response
-
EN54-24 compliant, certified for life safety and evacuation systems
-

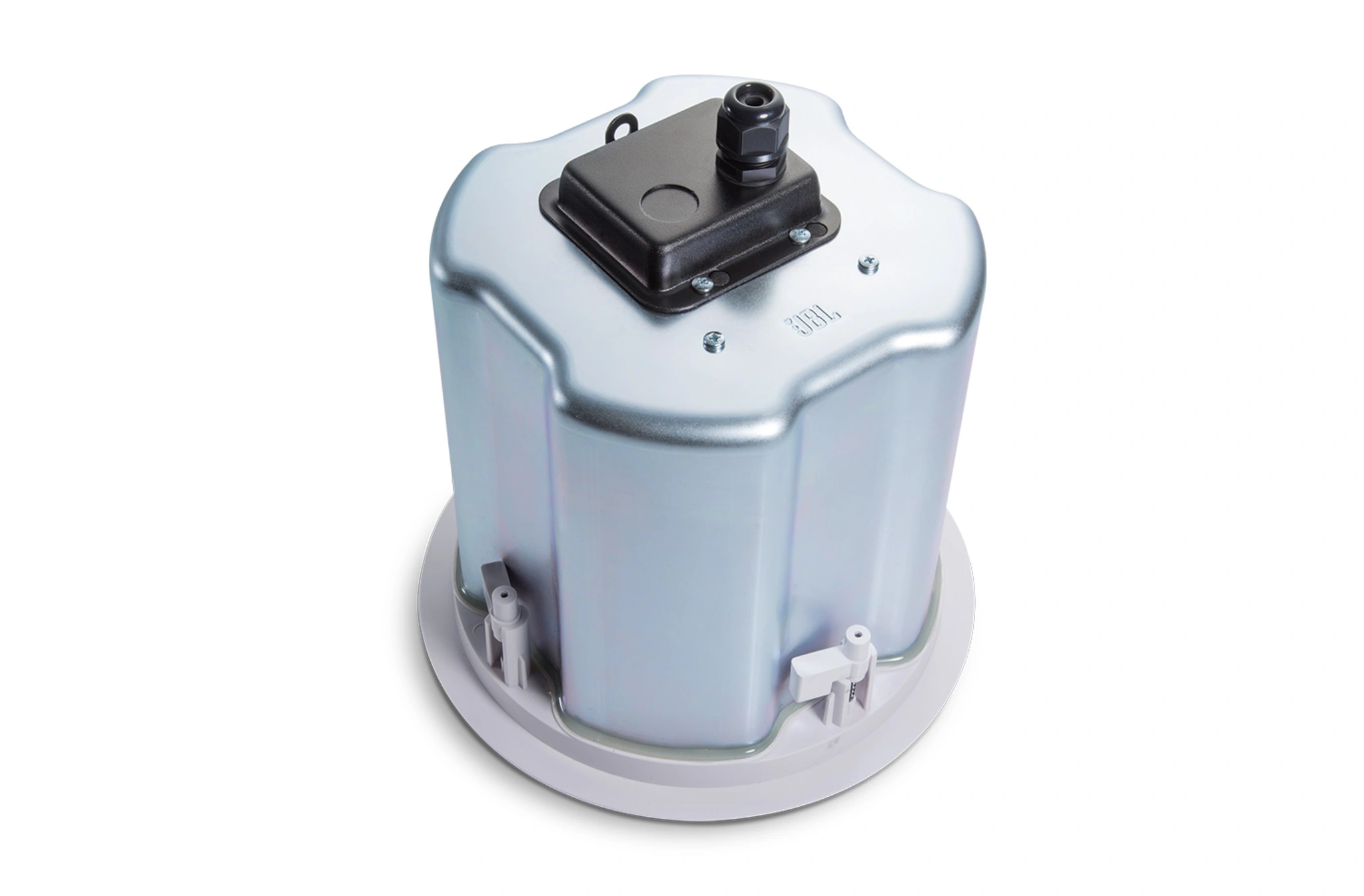

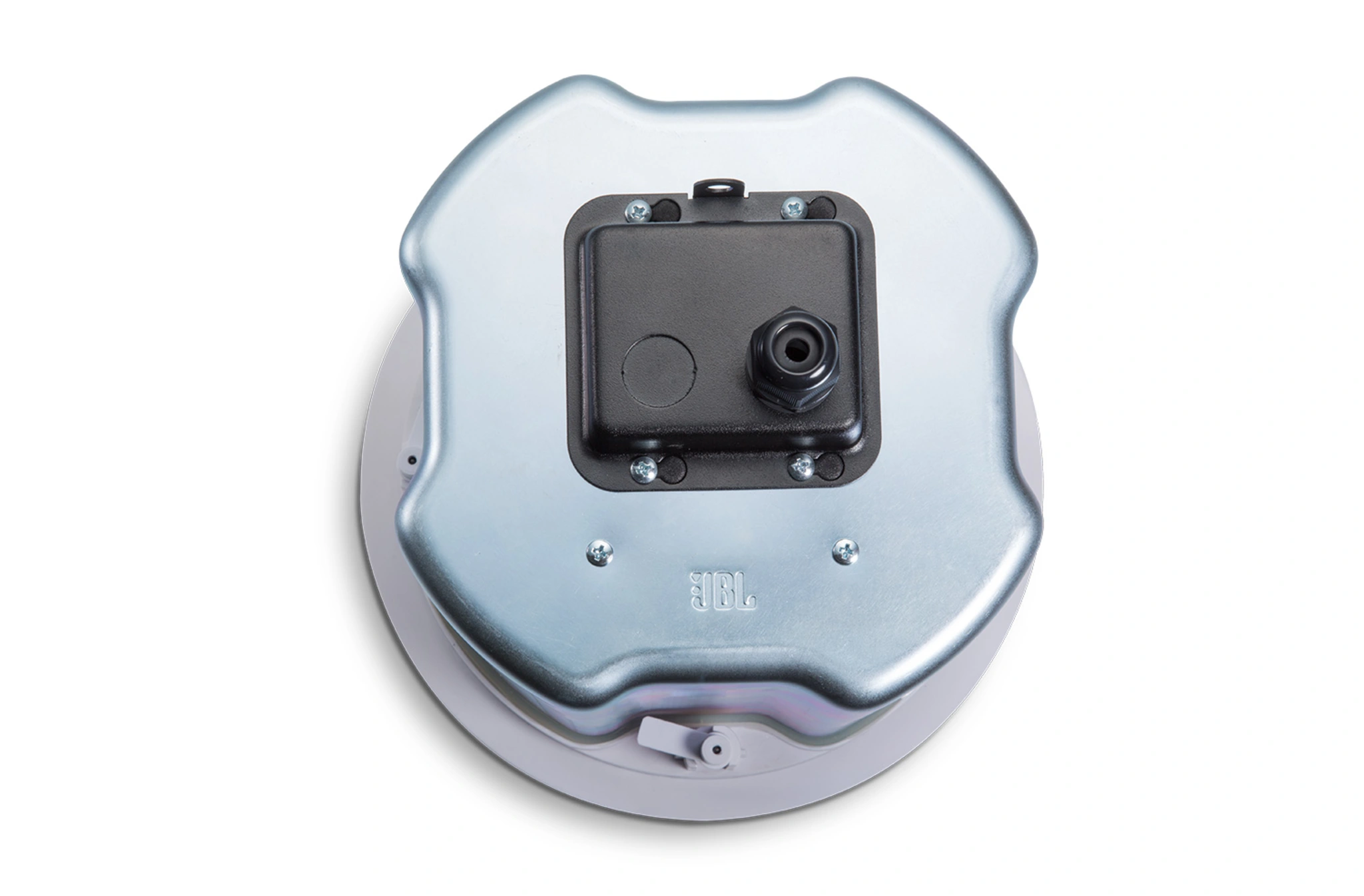

Integrated backcan for fast and secure installation
-
Multi-tap 70V/100V & 8Ω operation (30W at 70V/100V, 50W at 8Ω)
-
Wide 110° coverage for consistent sound across large areas
-
High sensitivity (91 dB) for powerful audio output
-
Durable, UV-resistant, and flame-retardant housing for long-term reliability
Specifications
-
Type: Two-Way 6.5″ Co-axial Ceiling Loudspeaker
-
Woofer: 165mm polypropylene cone
-
Tweeter: 19mm soft-dome, liquid-cooled
-
Frequency Range: 62 Hz – 20 kHz
-
Sensitivity: 91 dB
-
Power Handling: 50W (8Ω direct) / 30W (70V/100V tap)
-
Coverage: 110° wide dispersion
-
Certifications: EN54-24 compliant
-
Housing: Flame-retardant, UV-resistant with integrated backcan
Frequently Asked Questions (FAQs)
1. Is the JBL Control 16C-VA suitable for life safety systems?
Yes, it is EN54-24 certified, making it ideal for voice evacuation and emergency applications where compliance and reliability are critical.
2. Can this loudspeaker be used in commercial venues?
Absolutely. With its 70V/100V compatibility, it integrates seamlessly into background music and paging systems in cafés, hotels, offices, and retail spaces.
3. Does the Control 16C-VA support low-impedance connections?
Yes. In addition to 70V/100V multi-tap systems, it also supports 8Ω direct connections, giving flexibility for different installation requirements.
4. How durable is this ceiling speaker?
It is built with a fire-resistant, flame-retardant, and UV-protected enclosure, ensuring safe and long-lasting use even in demanding environments.
5. Is installation quick and easy?
Yes. The integrated backcan allows for fast and secure installation, suitable for both new construction and retrofit projects.
6. What sound performance can I expect?
With a frequency range of 62 Hz – 20 kHz and 91 dB sensitivity, it delivers clear vocals, smooth highs, and strong bass, ensuring excellent performance for both music and speech.
7. Where is the Control 16C-VA most commonly installed?
It is widely used in airports, hotels, schools, restaurants, and commercial spaces where high-quality sound and EN54-24 compliance are required.
