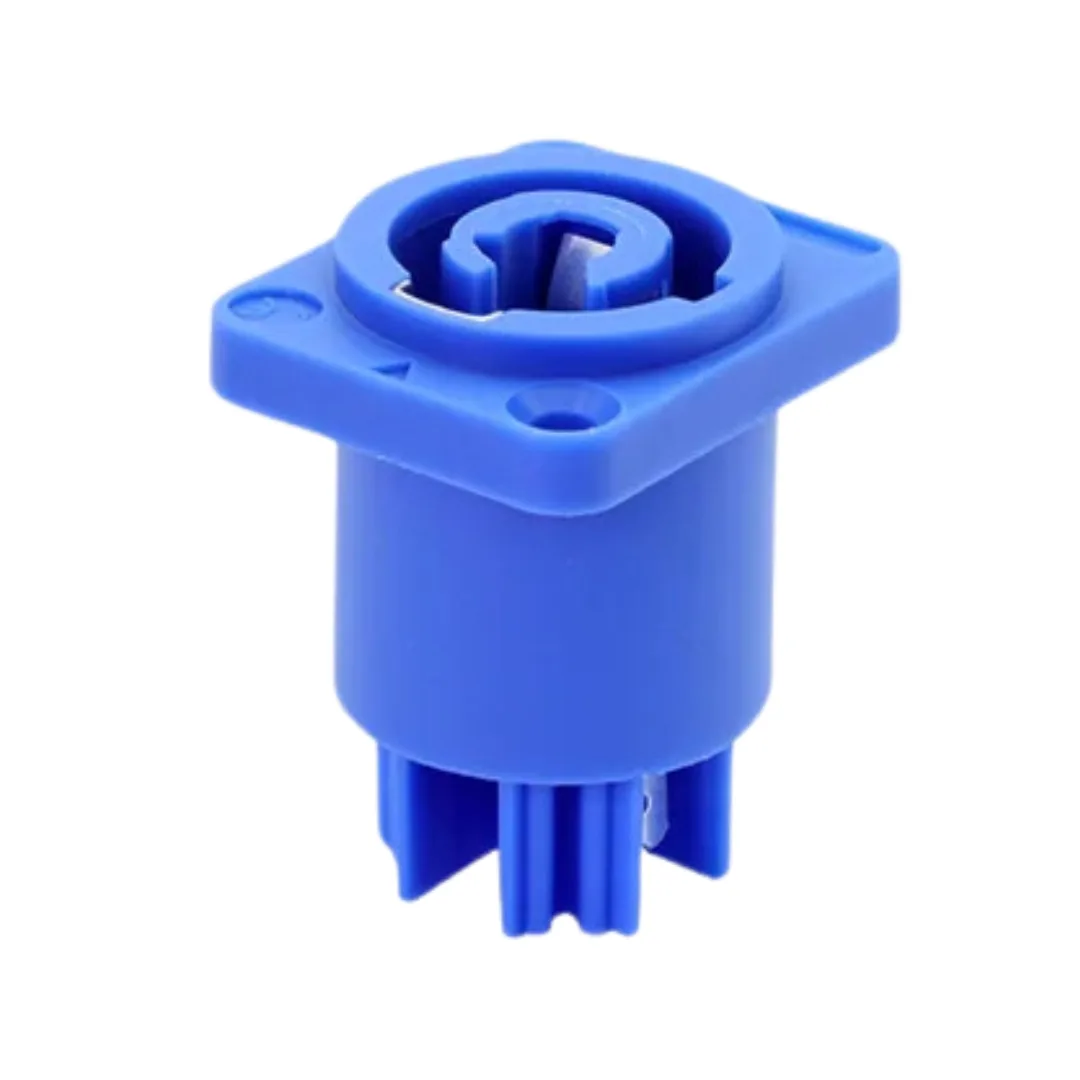

Durable TOP PRO Female Mount Powercon Connector 3pins – Secure & Stable Power
The TOP PRO Female Mount Powercon Connector 3pins is a crucial component for ensuring reliable and secure AC power input on professional audio, lighting, and video equipment. Explicitly designed for panel or chassis mounting, this 3-pin female Powercon receptacle provides a robust and locking connection point for male Powercon power cables. It’s an indispensable choice for equipment manufacturers and system integrators who require a stable power interface that resists accidental disconnections in demanding environments.
Key Features:
- Secure Locking System: Features a robust latching mechanism that ensures a firm and stable connection with male Powercon cable connectors, preventing unintended power loss.
- High Current Capacity: Engineered to safely handle significant AC power loads, making it ideal for powering amplifiers, LED walls, moving lights, and other high-demand professional gear.
- Robust Construction: Built from durable, high-impact materials designed for longevity and reliable performance even with frequent connections and disconnections.
- 3-Pin AC Standard: Provides essential connections for Live, Neutral, and Ground, adhering to common electrical safety and industry standards for AC power.
- Chassis/Panel Mount Design: Specifically engineered for secure installation onto equipment chassis, rack panels, or custom power distribution units.
- Reliable Power Delivery: Ensures consistent and stable power flow, critical for the optimal and safe operation of sensitive and high-performance devices.
Specifications:
- Connector Type: Powercon Compatible (AC Power Connector)
- Gender: Female (Chassis/Panel Mount)
- Number of Pins: 3-Pin (Live, Neutral, Ground)
- Voltage Rating: Up to 250V AC (typical)
- Current Rating: Up to 20A (typical)
- Locking System: Latching / Quick Lock

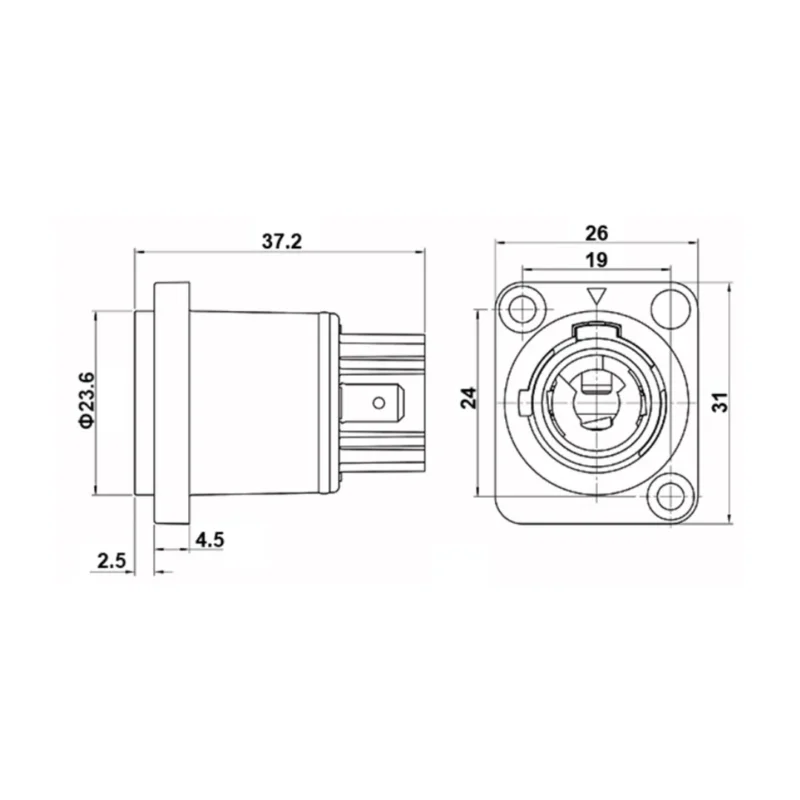

- Mounting Type: Standard chassis cut-out (e.g., D-size compatible) with screw mounting

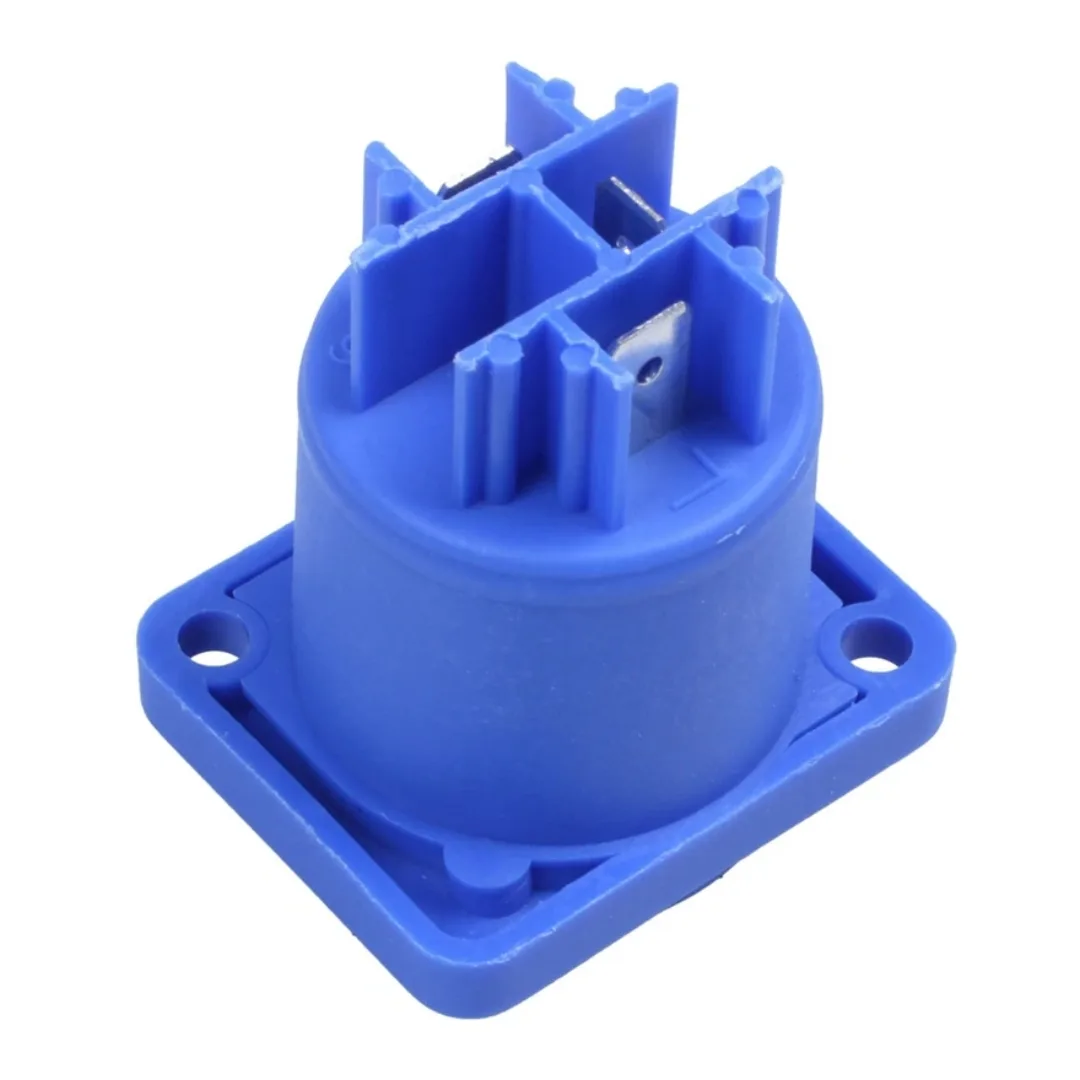

- Termination: Faston terminals or solder lugs (for internal wiring connections)
- Material: High-grade thermoplastic housing, metal contacts
Frequently Asked Questions:
1. What is the primary use of the TOP PRO Female Mount Powercon Connector?
It is primarily used as the AC power input socket mounted directly on professional audio, lighting, and video equipment, where male Powercon power cables plug into it.
2. Why is a locking mechanism important for this type of connector on equipment?
The locking mechanism is crucial because it physically secures the power cable, preventing accidental disconnections that could lead to power loss or damage during critical operations or events.
3. What do the “3 pins” on this connector signify for power?
The 3 pins represent the standard electrical connections for Live, Neutral, and Ground, which are essential for safe and proper AC power transmission to the equipment.
4. Is this connector easy to install into equipment?
Yes, it’s designed for standard chassis mounting, typically fitting into a common D-size cut-out with screw-on tabs, making it straightforward to integrate into various equipment designs.
