TOP PRO DS-506 – IP55 Weather-Resistant Wall Speaker for Professional Audio
The TOP PRO DS-506 is built for environments where sound quality and durability matter equally. As a premium IP55 outdoor wall speaker in the UAE, it’s ideal for restaurants, commercial spaces, hotels, terraces, and covered outdoor venues that require precise, reliable sound in all conditions.

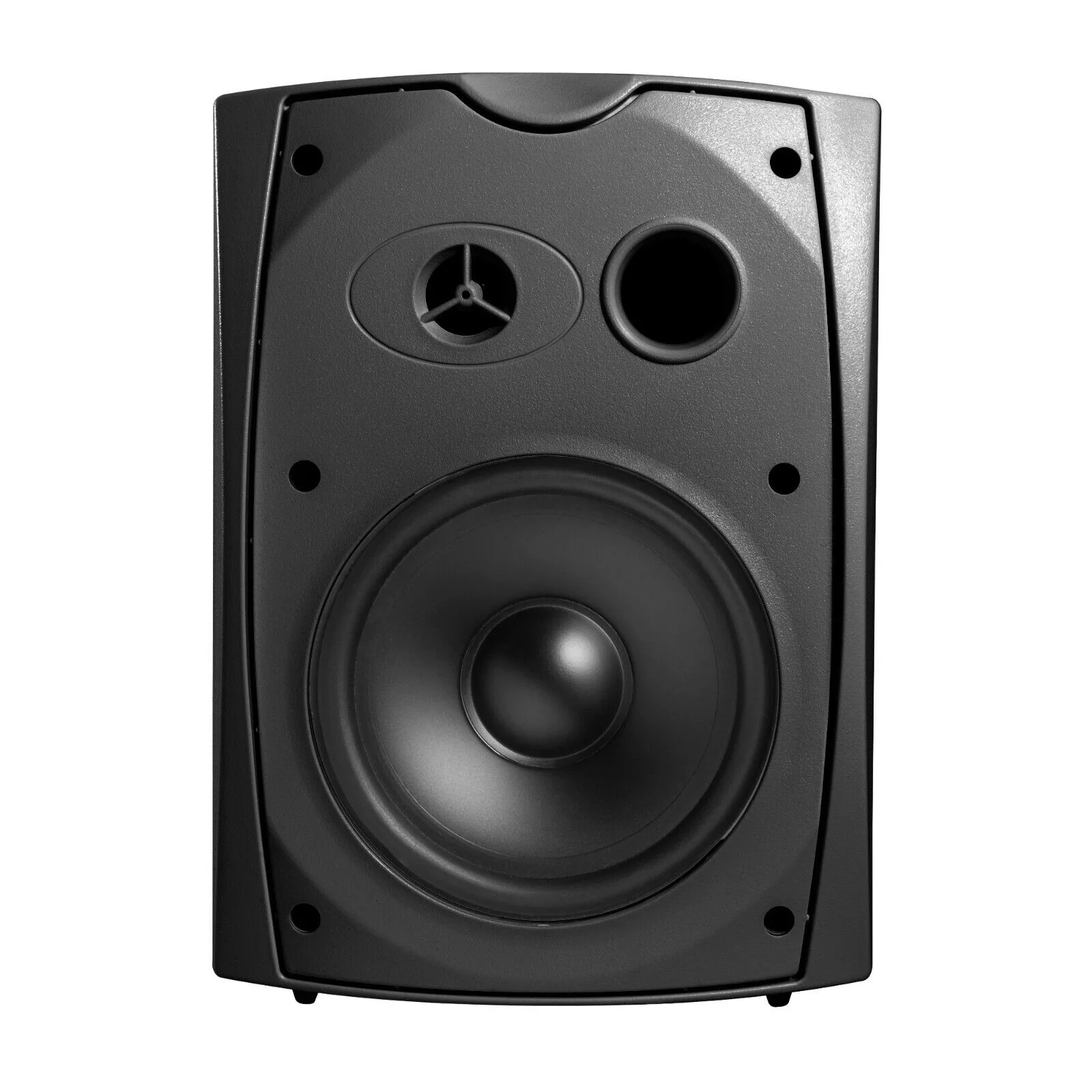

Its rugged ABS enclosure and rustproof aluminium grille protect the components from rain, dust, and moisture, while the waterproof vent and protective cloth prevent water from entering the cabinet. Inside, a 6.5-inch polypropylene woofer and a 1-inch Mylar dome tweeter collaborate to produce deep bass, smooth mids, and crisp highs across a frequency range of 60Hz–20kHz. With 8Ω, 70V, and 100V compatibility, the DS-506 is ready for almost any audio installation.
Key Features
-
IP55-rated design for indoor or outdoor applications
-
6.5-inch woofer for rich, powerful low-end
-
1-inch Mylar dome tweeter for detailed high frequencies
-
ABS waterproof cabinet and rustproof aluminium grille
-
Built-in transformer supports 70V/100V line systems and 8Ω setups
-

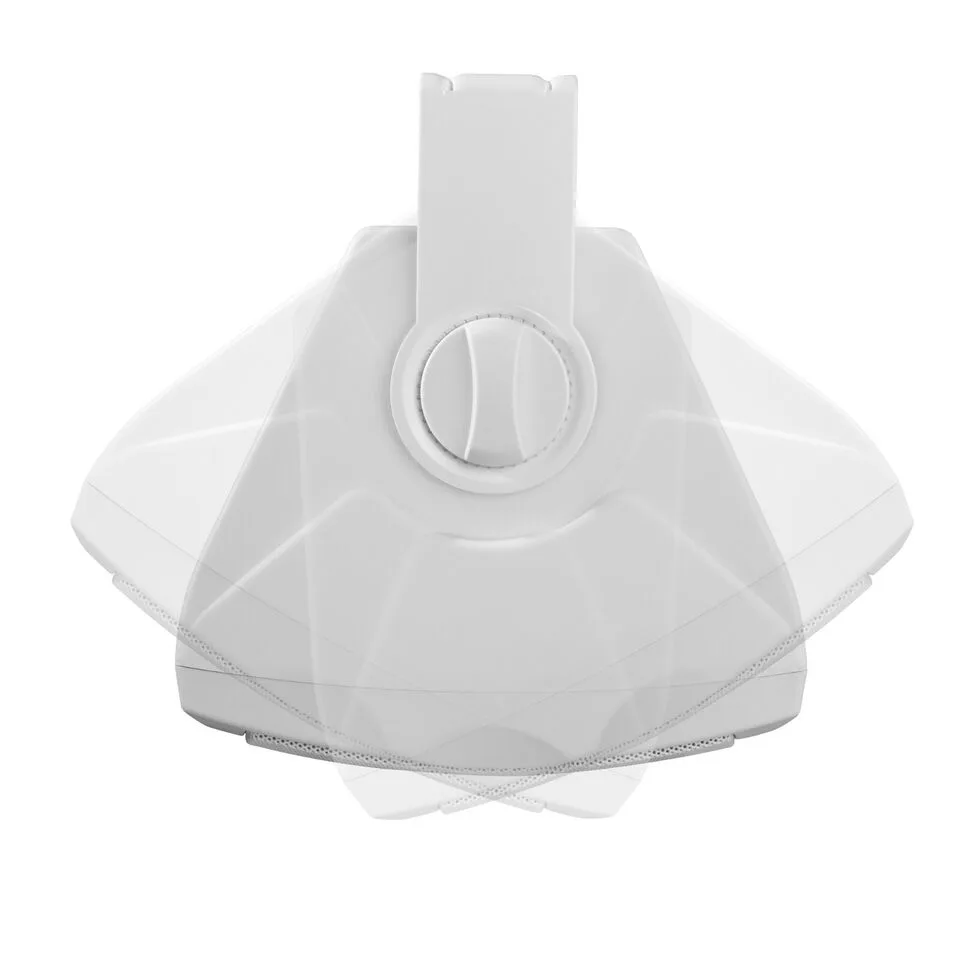

Swivel wall bracket for easy, adjustable installation
Specifications
-
Usage: Commercial / Restaurant / Outdoor / Indoor
-
Impedance: 100V or 8Ω
-
IP Rating: IP55
-
Cabinet Material: ABS (Waterproof)
-
Enclosure: Vented with waterproof vent
-
Grill Material: Aluminium (Waterproof & Rustproof)
-
Protective Cloth: Blocks water ingress
-
Mounting: Swivel wall bracket with quick-release knobs
-
Woofer: 6.5” polypropylene cone
-
Tweeter: 1” Mylar dome
-
Frequency Response: 60Hz – 20kHz
-
Sensitivity: 88dB
-
Terminals: 5-way binding post
-
Transformer: Built-in (Supports 70V & 100V)
-
Tap Switch: Built-in for easy power selection
-

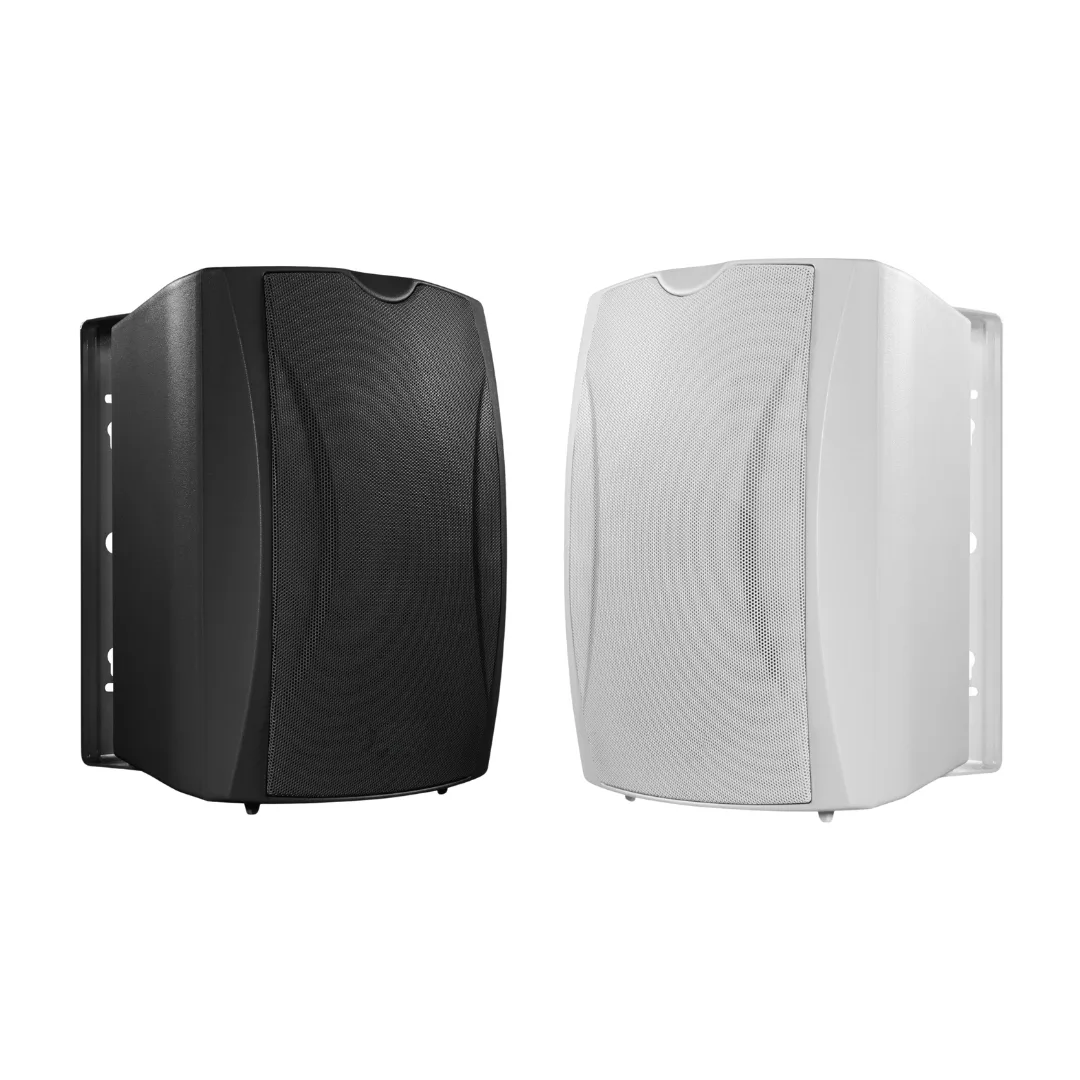

Colour Options: Black / White
-
Weight: 2 kg
-
Dimensions: 21.5 × 20 × 29 cm
Frequently Asked Questions
Q1: Is this speaker suitable for year-round outdoor use?
Yes, the IP55 rating ensures protection from rain and dust, making it suitable for most outdoor environments.
Q2: Can I use it with a low-impedance amplifier?
Yes, it works with 8Ω, 70V, and 100V systems, so it’s compatible with a wide range of setups.
Q3: Does it come with mounting hardware?
Yes, it includes a swivel wall bracket for quick installation and adjustable positioning.
