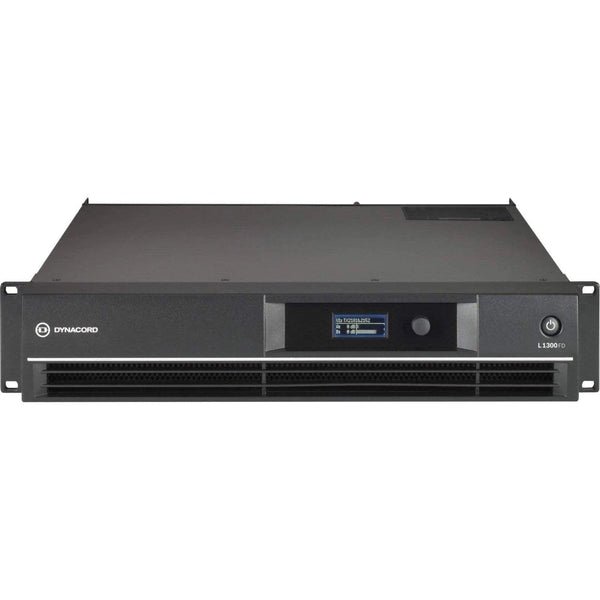

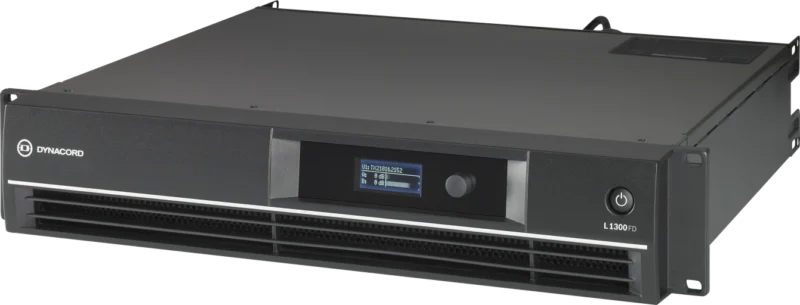

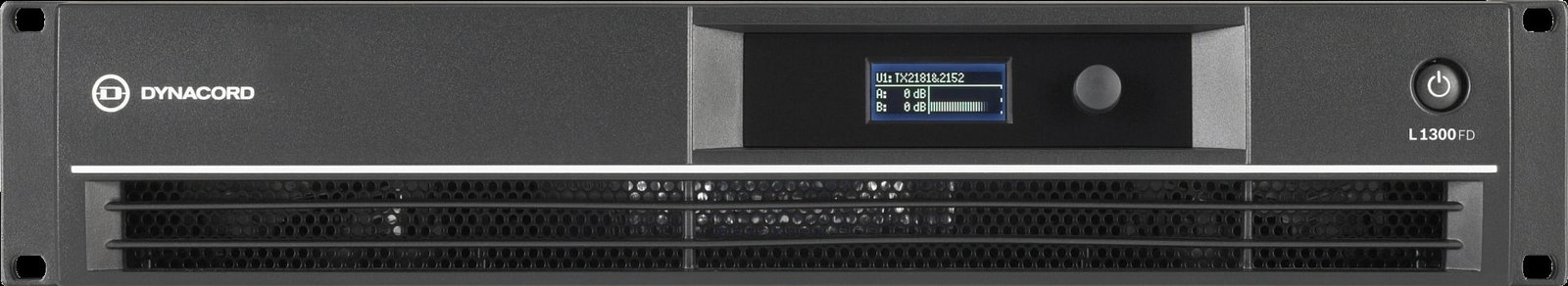

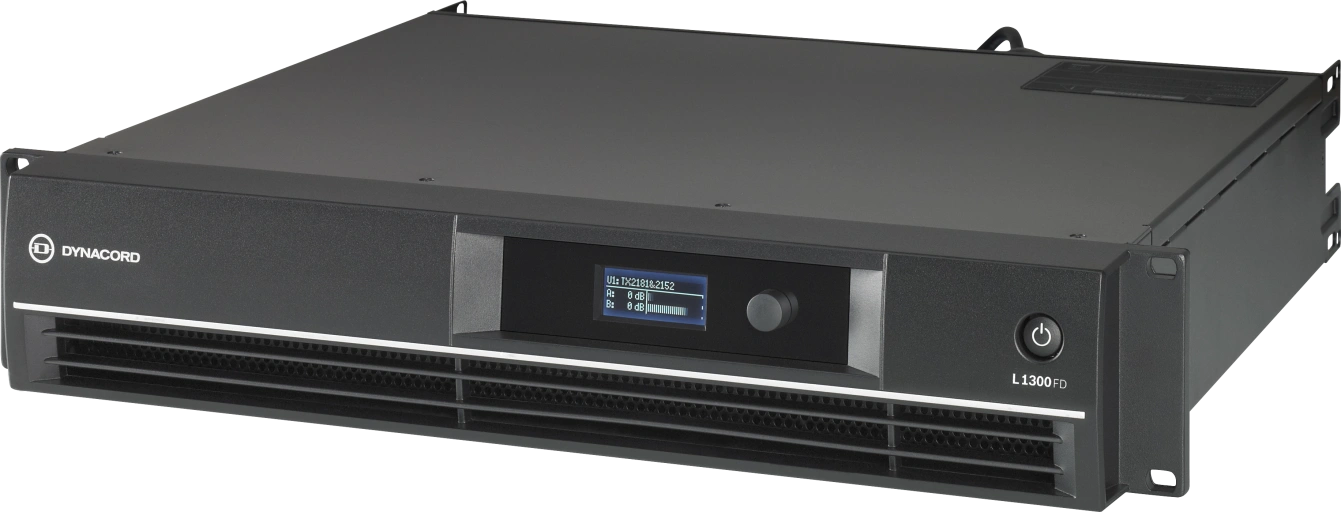

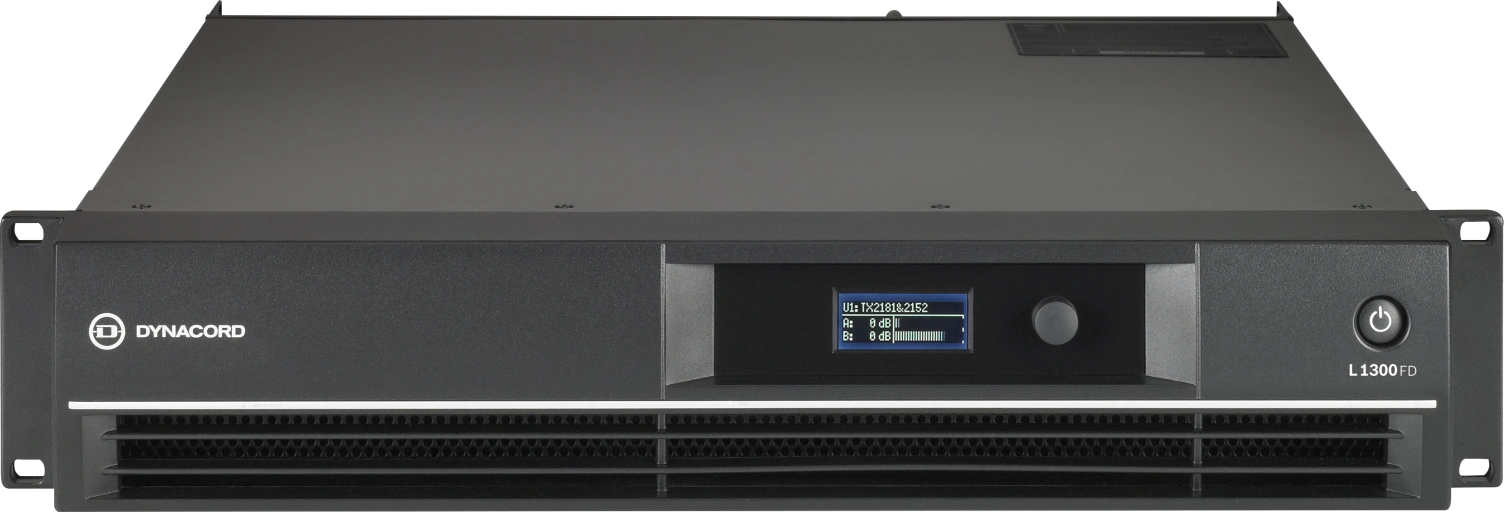

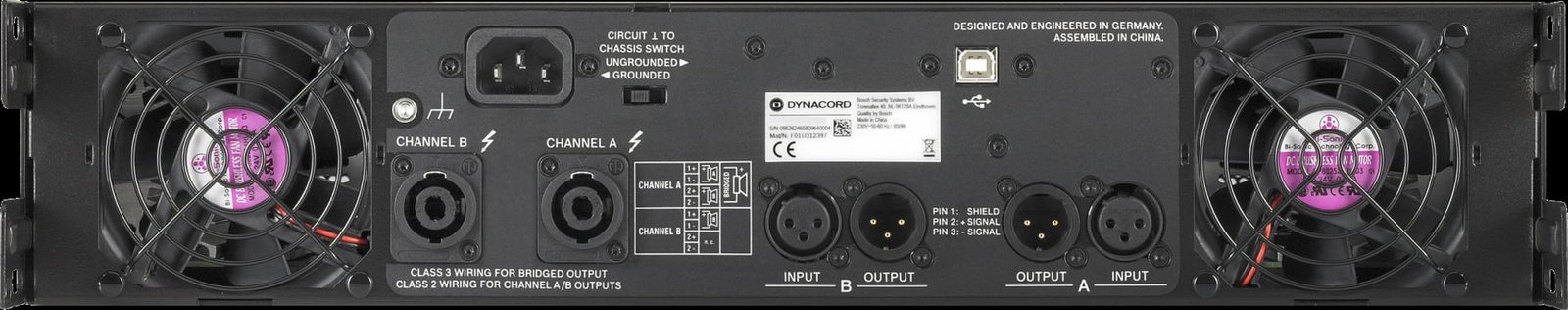

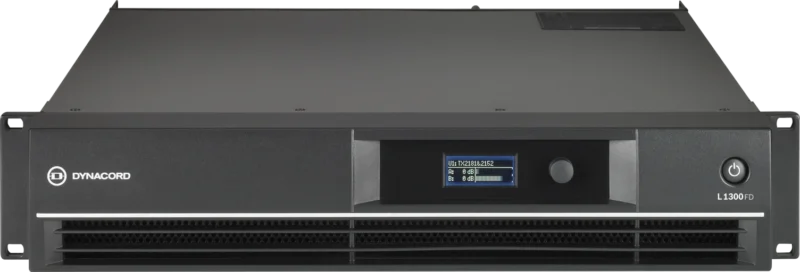

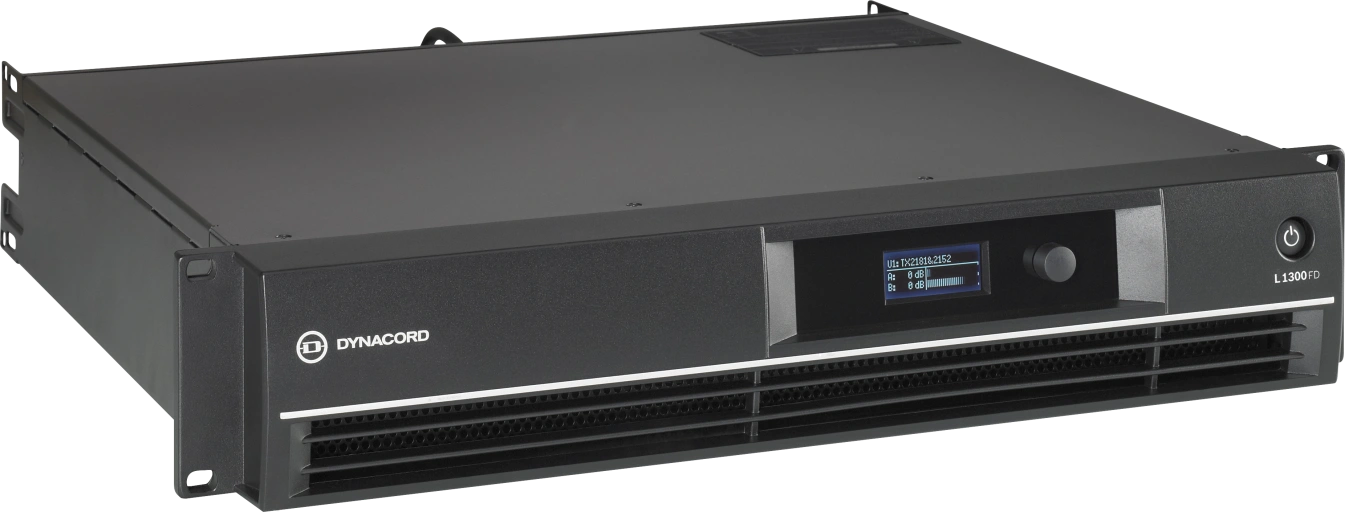

Dynacord L1300FD-EU Power Amplifier – Precision Control for Professional Audio
The Dynacord L1300FD-EU is a two-channel power amplifier designed to meet the needs of live sound professionals. Combining FIR-Drive speaker processing, integrated DSP, and robust Class AB/Class H topology, the L1300FD delivers stable output and detailed audio performance across a wide range of speaker systems. Whether you’re managing small stage setups or larger touring systems, this amplifier ensures dependable operation and flexible control.
Key Features
-
Dual-Channel Power: Delivers 1100 W at 2 Ω / 660 W at 4 Ω / 350 W at 8 Ω per channel, providing versatile speaker configurations.
-
FIR‑Drive Processing: Advanced linear‑phase filters for precise speaker alignment and improved clarity.
-
Integrated DSP: Built‑in 10‑band EQ, crossover, delay, and limiter for complete system control.
-
Flexible Operation: Compatible with SONICUE software for remote management and preset storage.
-
Comprehensive Protection: Includes thermal, short‑circuit, and DC safeguards for reliable performance.
-
User‑Friendly Interface: Bright LCD for easy parameter monitoring and adjustment.
Specifications
-
Model: Dynacord L1300FD‑EU
-
Channels: 2
-
Power Output: 2 Ω – 1100 W / 4 Ω – 660 W / 8 Ω – 350 W
-
Frequency Response: 10 Hz – 21 kHz (±1 dB)
-
Input Impedance: 20 kΩ balanced
-
Output Topology: Class AB / Class H
-
DSP Functions: 10‑band EQ, delay, limiters, user presets
-
Power Supply: 100–240 V AC, 50/60 Hz
-
Dimensions: 483 × 88 × 462.4 mm
-
Weight: 12.9 kg
FAQs
Q1: Is the Dynacord L1300FD‑EU suitable for large venues?
Yes. Its 1100 W per channel at 2 Ω output makes it suitable for large halls, auditoriums, and outdoor events. It delivers consistent power with low distortion, maintaining clarity even at high sound levels.
Q2: What is FIR‑Drive technology?
FIR-Drive utilizes digital filters that align speaker phase and frequency for enhanced accuracy. It helps eliminate phase distortion, producing a more transparent, natural sound that’s ideal for professional setups.
Q3: Can I use the L1300FD with non‑Dynacord speakers?
Yes. The built-in DSP allows for custom tuning of any speaker brand. You can create and store presets to match your preferred sound system.
Q4: How does the integrated DSP improve performance?
It offers real-time control over EQ, crossovers, and limiters, allowing you to fine-tune your mix and protect your speakers from overload. The result is cleaner sound and extended equipment life.
Q5: Is remote control possible?
Yes. You can connect the amplifier to SONICUE software for complete remote monitoring, adjustment, and firmware updates from your computer.
Q6: What protection systems are included?
The L1300FD features multiple layers of protection, including over—temperature shut—off, short-circuit protection, peak current limiters, and DC offset prevention, ensuring safe operation during extended sessions.
Q7: How does it differ from other Dynacord L‑Series amplifiers?
The L1300FD is ideal for mid-range applications. Higher models, such as the L1800FD or L3600FD , offer greater power but share the same DSP platform and reliability.
