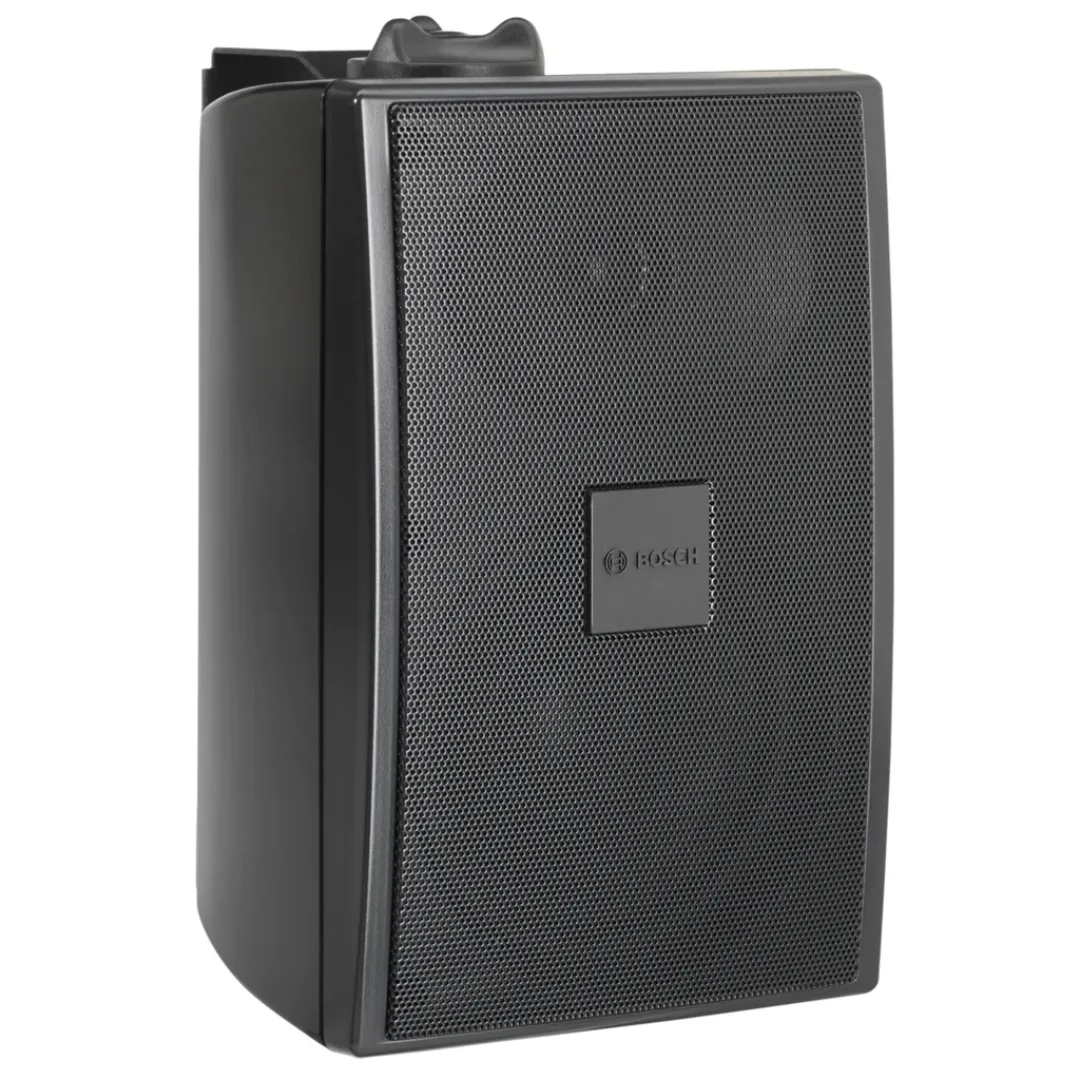

BOSCH LB2-UC15-D1/L1 Cabinet Wall Speaker – 15W Professional Audio Solution
The BOSCH LB2-UC15-D1/L1 Cabinet Wall Speaker is a versatile, high-quality sound system designed for background music and clear voice announcements. With 15W rated power and compatibility with both 100V line and low-impedance systems, it offers flexible installation for a wide range of commercial environments.
Its wide frequency response (95Hz–20kHz) ensures balanced sound reproduction, while the durable, modern cabinet design fits seamlessly into offices, restaurants, hotels, schools, and retail spaces. The 4-inch woofer and 0.51-inch dome tweeter deliver clear highs and rich lows, making it ideal for public address and ambient music applications.
Key Features:
-
15W power handling for reliable audio performance
-
Compatible with 100V and low-impedance systems for installation flexibility
-
Wide frequency range (95Hz–20kHz) for both music and speech clarity
-
Modern cabinet design with multiple mounting options
-
Ideal for commercial spaces such as offices, hotels, restaurants, and schools
Specifications:
-
Maximum Power: 22.5 W
-
Rated Power (PHC): 15 W
-

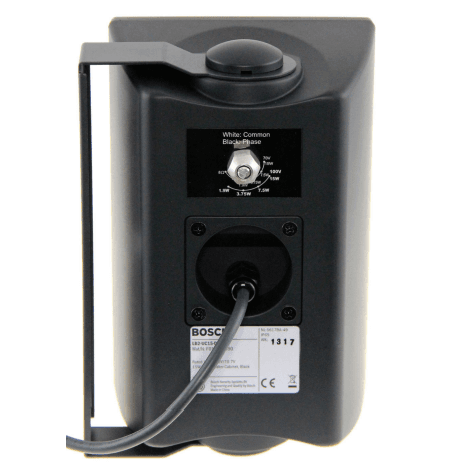

Power Tapping: 15 / 7.5 / 3.75 / 1.9 W
-
Sound Pressure Level (SPL): 99 dB at rated power / 87 dB at 1 W (1 kHz, 1 m)
-
Frequency Range (-10 dB): 95 Hz – 20 kHz
-
Opening Angle (-6 dB): 184° / 112° (horizontal), 170° / 35° (vertical)
-
Rated Input Voltage: 11 / 70 / 100 V
-
Rated Impedance: 8 / 326 / 667 ohm
-
Transducers: 4-inch woofer, 0.51-inch dome tweeter
-
Connection: 2 m two-wire cable
FAQs:
Is the BOSCH LB2-UC15-D1/L1 suitable for music and announcements?
Yes, it delivers clear voice reproduction and balanced music playback.
Can this model be used with both 100V line and 8-ohm systems?
Yes, it supports both system types for maximum installation flexibility.
Does it come with a mounting system?
Yes, it features a cabinet design with flexible wall mounting options.
